Material

I. Overview of PEEK performance

1. Fatigue resistance
2. Heat resistance
3. Wear resistance
4. Self-lubrication
5, flame retardant
6, hydrolysis resistance
7,Electrical properties and radiation resistance
8. Chemical resistance

II. PEEK resin application field distribution

III. PEEK resin application fields and related products

Because PEEK(polyether ether ketone) plastic raw material resin has the above many advantages, so in the petrochemical industry, electronic and electrical, instrumentation, machinery and automobile, medical and health, aerospace, military nuclear energy and many other fields have been widely used. Now the more mature applications in China are: air compressor piston ring, thrust ring, choke ring, valve disc, bacteria valve, star wheel, sealing ring, ball valve seat, bearing cage, oil-free lubrication bearings, magnetic pump isolation sleeve, electrode, gear, screw, electromagnetic wire, radiation window protection, microwave digestion tank, wafer carrier and so on. Polyether ether ketone (PEEK) resin is a kind of special engineering plastic with excellent performance. PEEK resin was first applied in the aerospace field, replacing aluminum and other metal materials to manufacture various aircraft parts. In the automobile industry, PEEK resin has good friction resistance and mechanical properties. As a raw material for manufacturing engine inner cover, bearings, gaskets, seals, clutch ring and other parts manufactured by PEEK resin are widely used in the transmission, braking and air conditioning systems of automobiles.

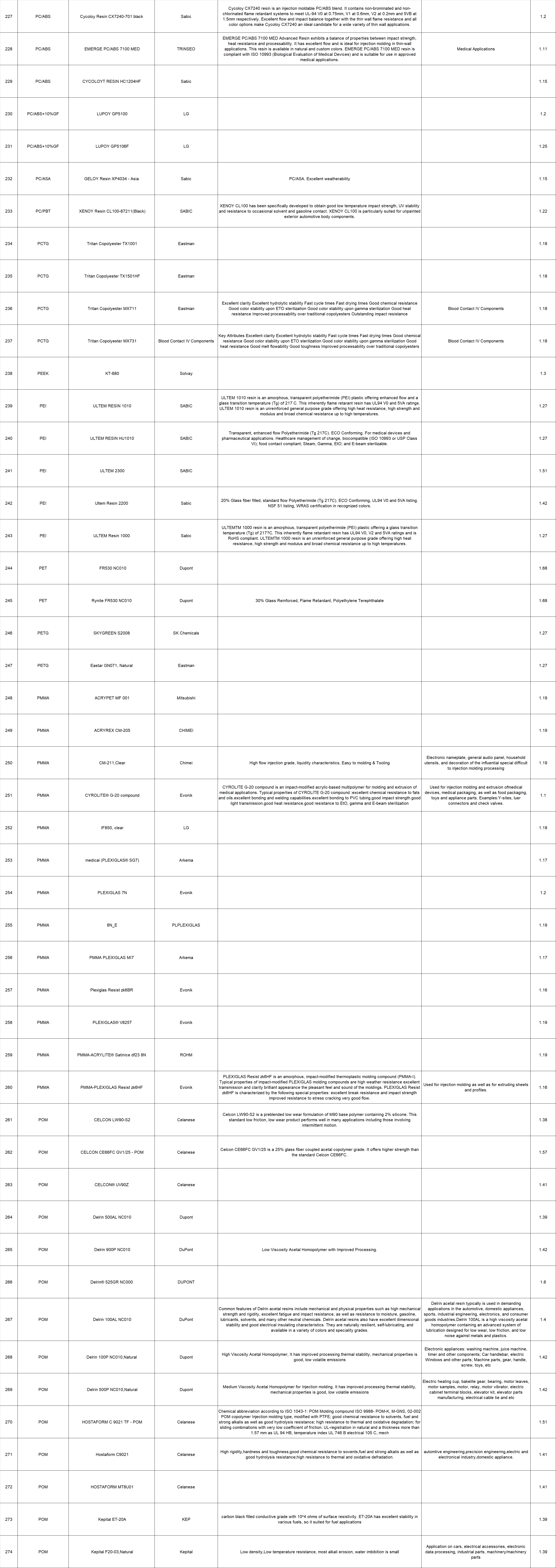

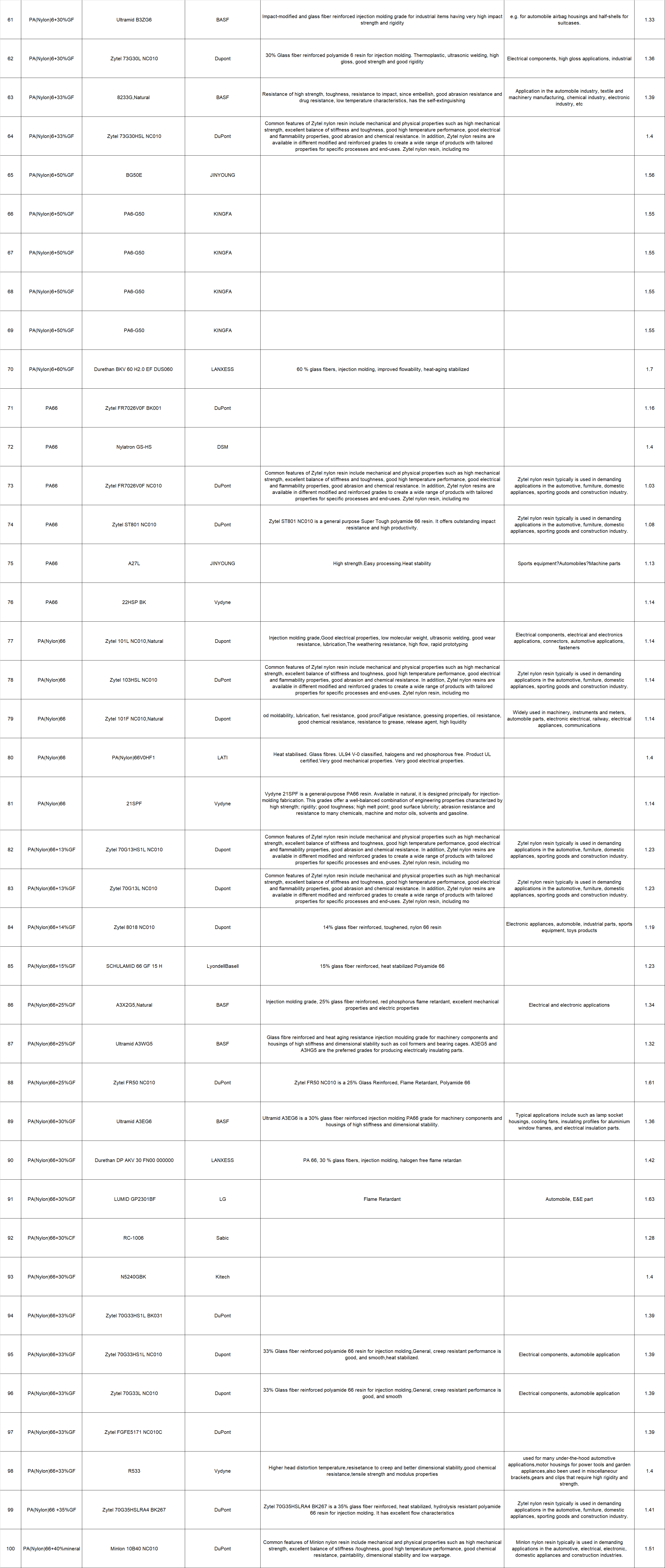

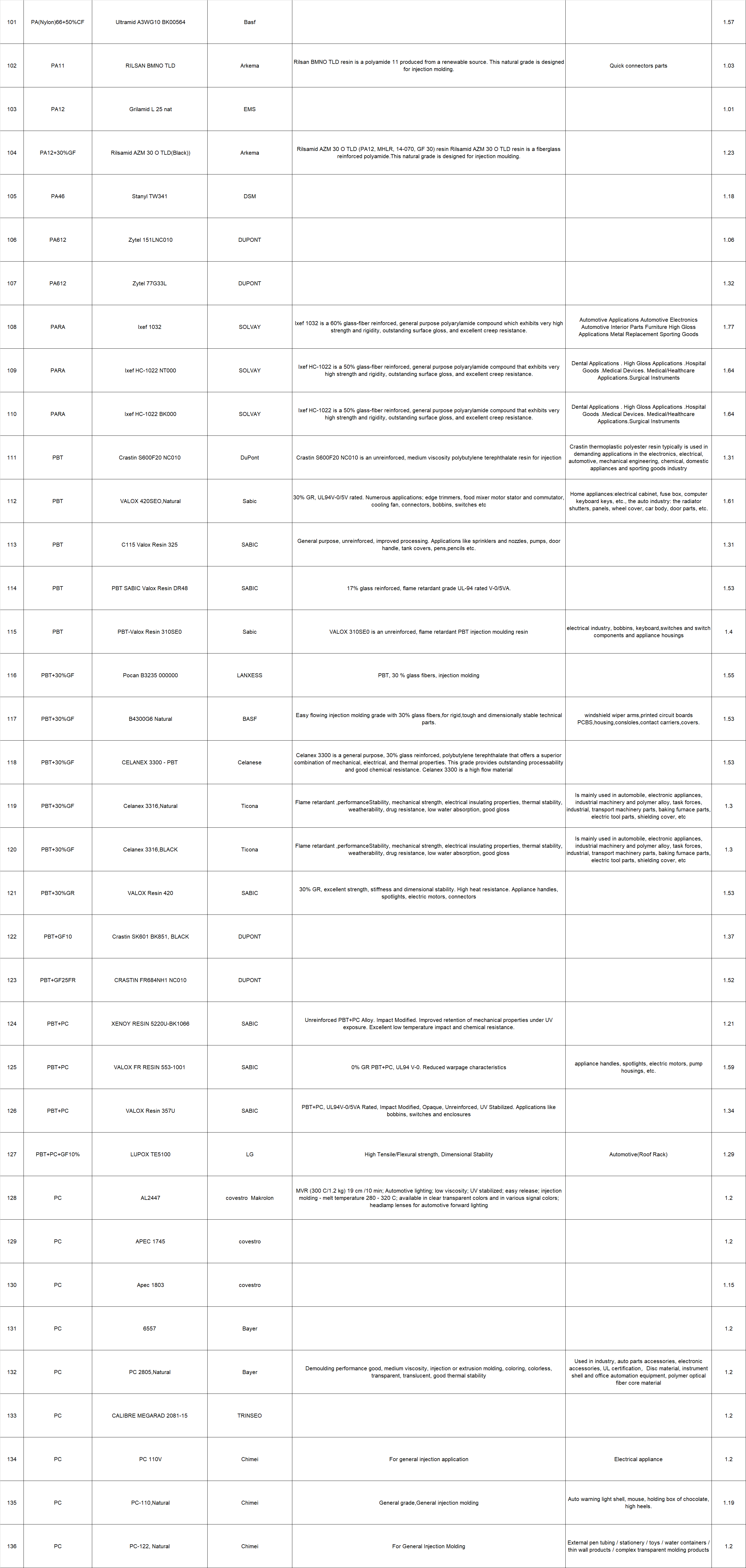

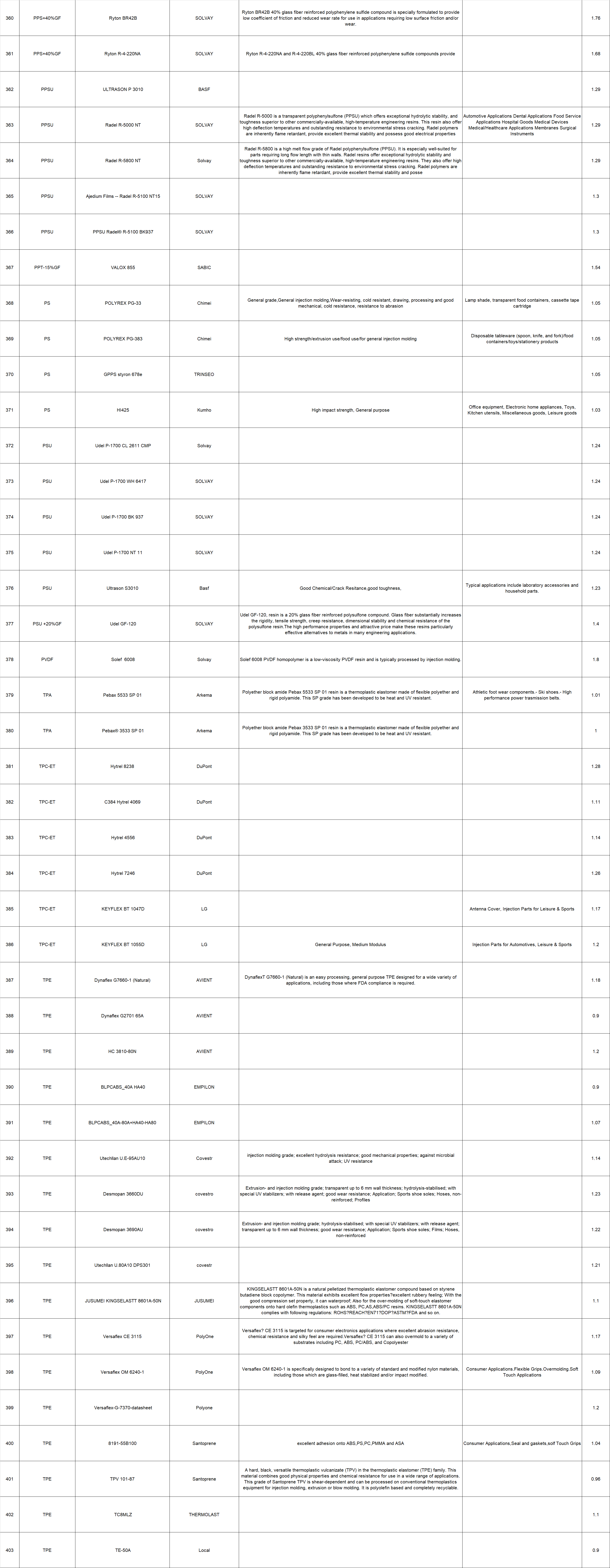

Plastic Material List

How To Choose A Type Of Material For Your Product?

Plastic injection molding is widely used because it can be adapted to meet almost any requirement, depending on the type of
plastic being molded. so it is an important decision to choose a correct plastic matenal, then materail properties to conside
Include durability, flexibility. performance, texture, density, and colon Available plastics have a variety of characteristics based on
their chemical make up. The intended application of the part will also determine the type of plastic that can be used. Contact the
experts at ITT for helo choosing the right plastic for your requirement of project. ITTD keeps over 400 different plastics
materials in stock for injection molding (You can find detailed information in plastics material list below),including:

▶Crystalline Plastics
▶Amorphous Plastics
▶Imidized Plastics
▶High-temperature Plastics
▶PPS
▶PEEK
▶PSU
▶PEI
▶Polyethylene (PE)
▶Polypropylene (PP)
▶Acrylonitrile
▶Butadiene Styrene (ABS)
▶Polyoxymethylene (POM)
▶Polystyrene (PS)

1. The long-term operating temperature of general plastics is below 100°C. Common types include PE, PP, PS, PVC and ABS.General plastics are the type of plastic we use the most in our daily lives, and are typically used for packaging. daily items, toys etc.

2. The long-term operating temperature of engineering plastics is around 100 °C to 150 °C. The five types of engineering plastics include PA,POM,PBT,PCand PPO.They are commonly used in mechanical products, automobiles, electrical and electronic products,ect.

3. The operating temperature of high-temperature engineering plastics is above 150°C. Besides their high heat resistance and flame retardancy, these materals usually also possess excellent mechanical processing properties, aging resistance,dimensional stability and excellent electrical properties. They can be used to replace metal matenals and are widely applied in electronic appliances,aerospace,medical equipment,automobiles and military fields. They are the top materials among plastics.

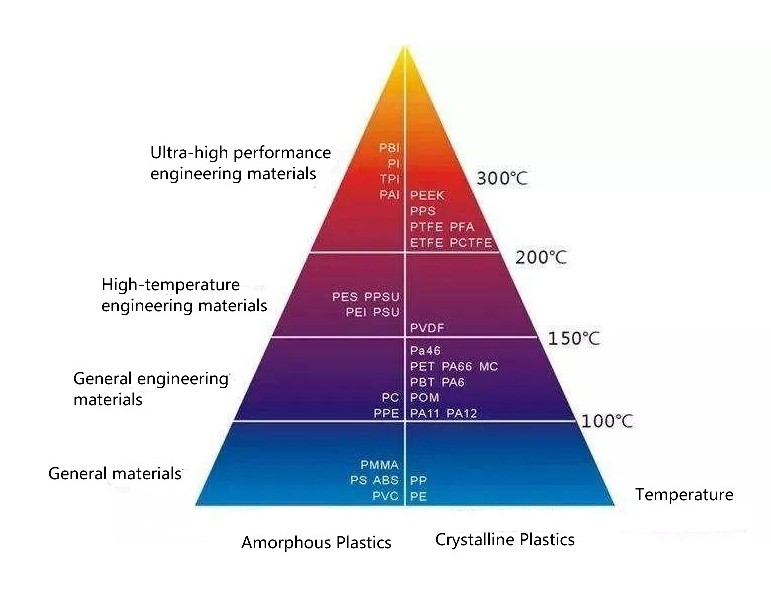

In conclusion. at the same time,you can also refer to the picture on the right to help you select the matenas. A detailed example of material PEEK below:

Plastic Injection Molding Materials

PEEK application and knowledge

CNC Processing Materials

Aluminum

Copper / Brass

Steel Alloy

Titanium

Steel Mild Low Carbon

PA

POM

ABS+PC

ABS

PMMA

PVC

PP

etc...

Metals

Plastics

3D Printing Materials

			Metals
items	Material	Min Wall-thickness	Min Hole Diameter	Printed Layer Height	Pringting Deviation	Temperature
1	Aluminium alloy	1mm	1.20mm	0.12mm	1.50%	Normal metals temperature resistance
2	Stainless Steel	1mm	1.20mm	0.12mm	1.50%	Normal metals temperature resistance
3	Titanium	1mm	1.20mm	0.12mm	1.50%	Normal metals temperature resistance
4	Aluminum	1mm	1.20mm	0.12mm	1.50%	Normal metals temperature resistance
5	Cobalt Chrome	1mm	1.20mm	0.12mm	1.50%	Normal metals temperature resistance
9	Copper	1mm	1.20mm	0.12mm	1.50%	Normal metals temperature resistance

此处是高级文本……

Plastics

items

Material

Min Wall-thickness

Min Hole Diameter

Printed Layer Height

Printing Deviation

Temperature

1

PA12

0.60mm

1.20mm

0.12mm

2.50%

130-150º

2

PA(Nylon)

0.60mm

1.20mm

0.12mm

2.50%

120-140º

3

PA(Nylon)+30%GF

0.60mm

1.20mm

0.12mm

2.50%

150-170º

4

White General 9400E

0.60mm

1.00mm

0.10mm

1%

about 45º

5

White High-precision 9400E

0.50mm

0.80mm

0.07mm

1%

about 45º

6

Transparent resin

0.60mm

1.00mm

0.10mm

1%

about 45º

7

Translucent Resins

0.60mm

1.00mm

0.10mm

1%

about 45º

8

High-temperature resin

0.60mm

1.00mm

0.10mm

1%

60-80º

9

10

High-toughness materials

0.60mm

1.00mm

0.10mm

1%

50-60º

此处是高级文本……
